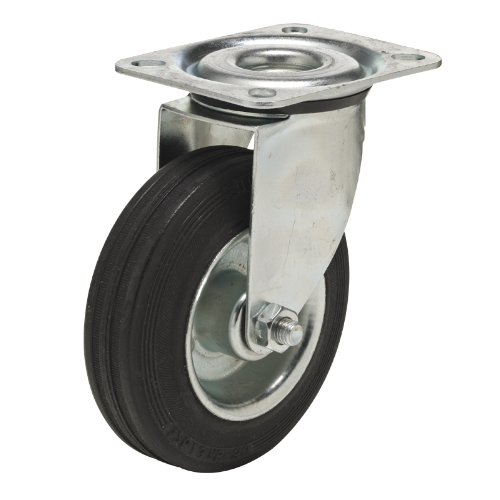

SERIES "STANDART" 036
The STANDART SERIES is a popular series of industrial wheels of medium load capacity, made of high-quality rubber. The use of such material, as well as the presence of a galvanized steel rim, makes it possible to use the wheels in adverse conditions: high humidity, exposure to aggressive chemical environments, uneven rough surfaces made of various materials. These are reliable and durable wheels with a robust design.
Industrial swivel wheels have good maneuverability due to the high-quality material of the contact surface (rubber) and the bracket, in the swivel unit of which a double-row ball bearing is installed.
Wheels are installed on industrial equipment, platform-type trolleys, garbage collection containers, scaffolding.
- TECHNICAL INFORMATION
- DESCRIPTION
- FUNCTIONS
- INDUSTRIES
- APPLICATION
- SUPPLEMENTAL
TECHNICAL INFORMATION
| Article |
|
|
|
|
|
|
|
|
Price in MDL | |
|---|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | mm | mm | kg | |||
| 036 10 080 | 80 | 22 | 110 | 36 | 102x84 | 80x60 | 9x14 | 55 | 55 | |
| 036 10 100 | 100 | 30 | 126 | 36 | 102x84 | 80x60 | 9x14 | 70 | 80 | |
| 036 10 125 | 125 | 34 | 150 | 39 | 102x84 | 80x60 | 9x14 | 100 | 0 |
Available on backorder |
| 036 10 160 | 160 | 36 | 190 | 51 | 135x105 | 105x75 | 10.3x13.5 | 150 | 170 | |
| 036 10 200 | 200 | 44 | 233 | 57 | 135x105 | 105x75 | 10.3x13.5 | 220 | 240 |
DESCRIPTION
BLACK HARD RUBBER WHEELS/STEEL
• 2.0/2.5mm thick galvanized steel swivel bracket.
• 4-bolt platform mount.
• Double-row ball bearing and plastic boot in the swivel unit.
• Brake mechanism that locks both the wheel and the fork.
• Hard black rubber tread, resistant to wear and deformation, provides low rolling resistance on uneven surfaces.
• Rim made of durable galvanized sheet steel, resistant to external influences.
• Roller bearing in the axle perfectly withstands axial and radial loads.
FUNCTIONS
• Industrial wheels of medium load capacity. Load capacity up to 220 kg
INDUSTRIES
• Construction.
• Industry.
• Housing and public utilities.
• Logistics / Warehousing.
• Services.
APPLICATION
• Mobile towers.
• Scaffolding and mobile platforms.
• Facade cradles.
• Equipment used at construction sites and industrial facilities.
• Garbage containers and solid waste bins.
• Platform and rack trolleys.
• Transport trolleys.
SUPPLEMENTAL
Information about wheels and operating conditions.
• Wheels are replaceable technical elements attached to equipment, platform trucks, etc. to ensure their mobility. This information applies to swivel wheels intended only for use on non-motorized vehicles and equipment (hereinafter referred to as objects) that are not, as a rule, in constant motion and move at a speed of up to 4 km/h.
• Operating conditions include, first of all, technically correct installation:
– The product must be firmly connected to the object in all places intended for this purpose.
– Swivel wheels must be mounted so that their swivel axis is in a vertical position.
– Non-swivel (fixed) wheels must be mounted so that the wheel axes lie on parallel lines.
– Swivel wheels installed on the object must be of the same type.
– The load on one wheel is calculated using the formula:
Q=((M+m) / (n – 1)) x W
Where:
Q – load on one wheel;
M – weight of the transported cargo;
m – weight of the trolley;
n – number of wheels;
W – safety factor, >1 under non-standard operating conditions.
• The wheel, bracket, brake and fixed systems, as well as the wheel axle are a single functional unit.
• A prerequisite for the correct selection of wheels is the availability of data on all possible loads.
